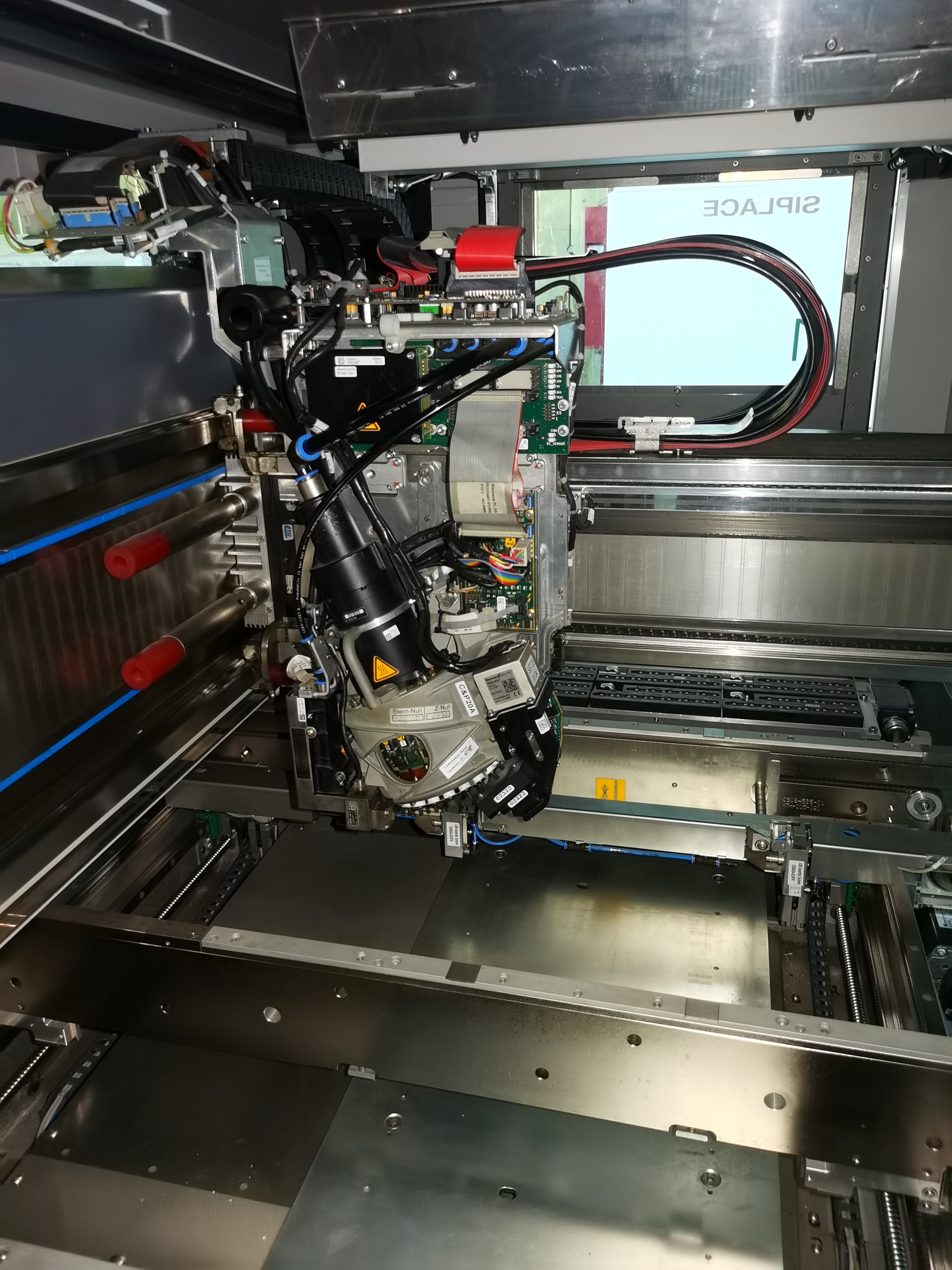

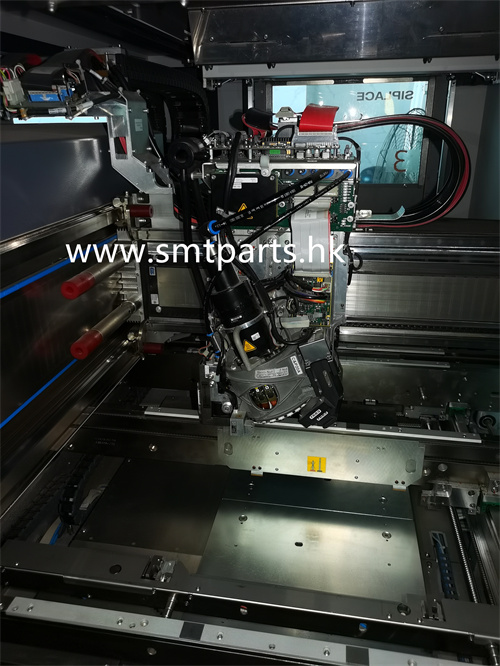

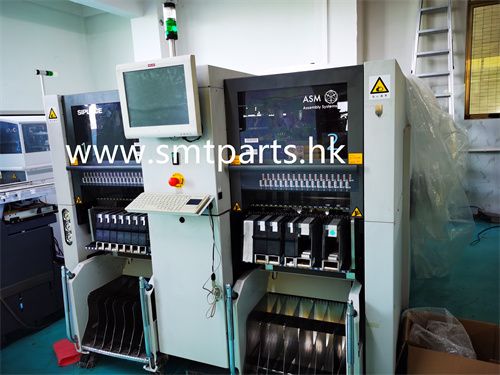

Siplace SX4
ASM
SX4
We have SX4, SX2 SX1 in our stock for sell, if you are interested with this, please contact us for details information.
| Machine Type | SIPLACE SX1 | SIPLACE SX2 | SIPLACE SX4 |
| Gantry | 1 | 2 | 4 |
| IPC Speed | 24,000 cph | 48,000 cph | 102,000 cph |
| SIPLACE Benchmarking | 30,000 cph | 60,000 cph | 120,000 cph |
| Theoretical speed | 33,875 cph | 67,750 cph | 135,000 cph |
| Machine Dimension | 1.5 x 2.4 m | 1.5 x 2.4 m | 1.9 x 2.5 m |
| Placement Head | SpeedStar | MultiStar | TwinStar |
| Component Range (mm) | 03015 – 200 x 125 mm | 03015 – 200 x 125 mm | 0201″ – 200 x 125 mm |
| Mounting Accuracy | ± 41 μm/3σ | ± 41 μm/3σ (C&P) | ± 22 μm/3σ |
| ± 34 μm/3σ (P&P) | |||
| Angle Accuracy | ± 0.5°/3σ | ± 0.4°/3σ(C&P) | ± 0.05°/3σ |
| ± 0.2°/3σ(P&P) | |||
| Conveyor Type | Single Conveyor, Flexible Dual Conveyor | Flexible Dual Conveyor, Quad Lane | |
| Conveyor mode | Asynchronous, synchronous, I-Placement | ||
| PCB Size | 50 x 50 mm – max. 850 x 560 mm | 50 x 50 mm – max. 450 x 560 mm | |
| PCB Thickness | 0.3 – 6.5 mm | 0.3 – 4.5 mm | |
| PCB Weight | max. 2 kg (SX1/2) | max. 5 kg (SX4) | |
| Feeder capacity | 120 slots with 8 mm X feeders | 148 slots with 8 mm X feeders | |
