YSM10
YAMAHA
YSM10

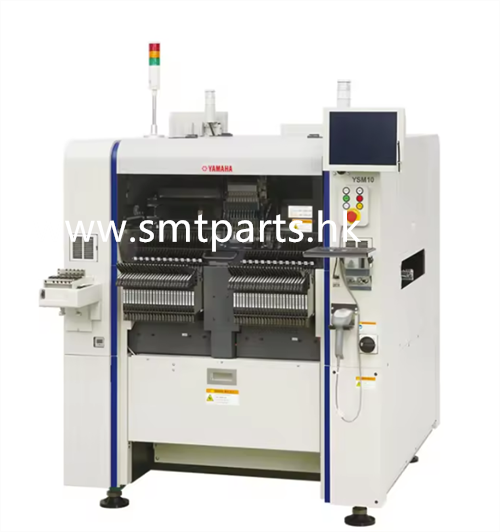

The YSM10 is newly developed based on the three “Ones” concept and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) an integration of these three models YS12,YS12F, YS12P into one platform.
| YSM10 | ||
|---|---|---|
| Applicable PCB | L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option. | |
| Applicable components | 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm | |
| Mounting capability | HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ) | |
| Number of component types | Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC) | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,254 x W1,440 x H1,445mm | |
| Weight | Approx. 1,270kg | |
The YSM10 is newly developed based on the three “Ones” concept and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) an integration of these three models YS12,YS12F, YS12P into one platform.
| YSM10 | ||
|---|---|---|
| Applicable PCB | L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option. | |
| Applicable components | 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm | |
| Mounting capability | HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ) | |
| Number of component types | Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC) | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,254 x W1,440 x H1,445mm | |
| Weight | Approx. 1,270kg | |
