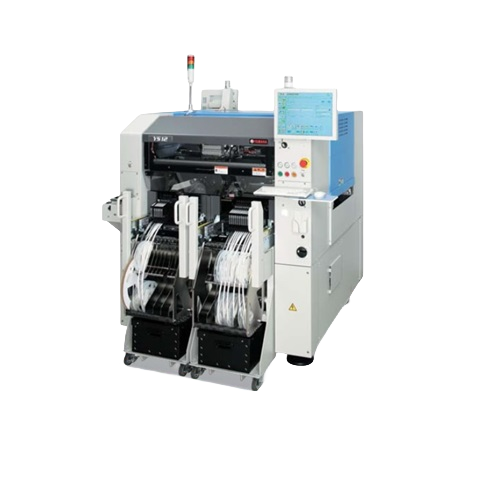

Yamaha YS12 SMT Pick And Place Machine

Yamaha YS12 Pick And Place Machine Model: KHY-000 Making the most of limited foot-print! • This compact platform design (front view breadth 1,2S4mm) assure flexible line arrangement in your site. • Both new designed 10 inline multi-heads and new recognition system ensure 36,000CPH (0.1sec/CHIP Equivalent: optimum condition). • Maximum feeder capacity 120 lanes. • Applicable to large size PCB(L510mm x W460mm). • Built-in tape cutter available as an option. • Conformity with both Machinery directive and EMC directive (CE marking).
Availability:
Quantity:
Inquire Add to Basket

  • YS12

  • YAMAHA

  • YS12

Applicable PCB:L510 x W460mm to L50 x W50mm

Through-put (Optimum): 36,OOOCPH(0.1sec/CHIP Equivalent)

Mounting accuracy Absolute accuracy (.u+30) : +/-0.05mm/CHIP

(Yamahas'standarcompo d nents)Repeatability (30) : +/-0.03mm/CHIP

Applicable components 0402 (Metric base) to 20mm components Note 1

Numberof component types:120 types (Max, 8mm tape reel conversion)

Power supply: 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source: 0.45MPa or more, in clean, dry states

External dimension: L1,254 x W1,440 x H1,450mm (cover top)

Note 2 L1,464 (End of extension conveyor) x W1,542 (End of guide for feeder carriage) x H1,450mm (cover top)

Weight: Approx.1,340kg
