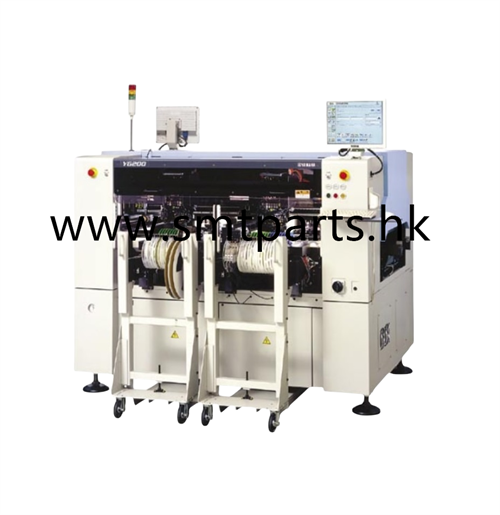

Yamaha YG200 SMT Pick And Place Machine

YAMAHA/YG200

Applicable PCB:L330×W250mm to L50×W50mm

Through-put (Optimum) 45,000CPH（0.08sec/CHIP Equivalent)

Mounting accuracy (Yamaha’s standard components)

Absolute accuracy (μ+3σ)：±0.05mm /CHIP

Repeatability (3σ)：±0.03mm/CHIP

Applicable components:0402（Metric base)to □14mm components

Height of components which can be mounted : 6.5mm or less
Alowable height on PCB surface before transport 6.5mm or less

Number of component types
80types（Max, 8mm tape reel conversion)

Power supply
3-Phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz

Air supply source
0.55MPa or more, in clean, dry states

External dimension
L1,950×W1,408（End of cover)×H1,450mm（cover top)
L1,950×W1,608（End of guide for feeder carriage)×H1,450mm（cover top)

Weight Appro:2080KG
